Reasons your Cuckoo may stop working

Jul 20

3 min read

Updated: Sep 6

Below is a list of common reasons Cuckoo Clocks stop working, some are easy fixes and others will be service related

Challenges with Common Cuckoos

Out of Beat: The clock is slightly tilted, resulting in an uneven "tick...tock" rhythm instead of a steady, symmetrical beat.
Air Currents: Breezes from ceiling fans, air conditioning vents, or open doors can stop the lightweight pendulum.
Wall Contact: The clock case may be shifting or not resting flat against the wall, causing the pendulum or weights to rub against the case.

Unwound Weights: The heavy iron weights have reached the floor or a piece of furniture, eliminating the gravity-driven power source.
Knot or Jam in Chains: The chain links have twisted, caught on internal wood, or jumped off the internal sprocket gear.
Winding Interruptions: Aggressive pulling on the chains temporarily relieves the driving force from the gears, halting the pendulum mid-swing.

Interlocking Hands: The hour and minute hands are bent or loose, causing them to catch or rub against each other.
Dial Contact: The hour hand is pressed too firmly against the clock face, creating friction that stops the gear train.
Pre-Chime Jam: The minute hand halts around the 55-to-58-minute mark because the internal warning lever is jammed before the cuckoo triggers.

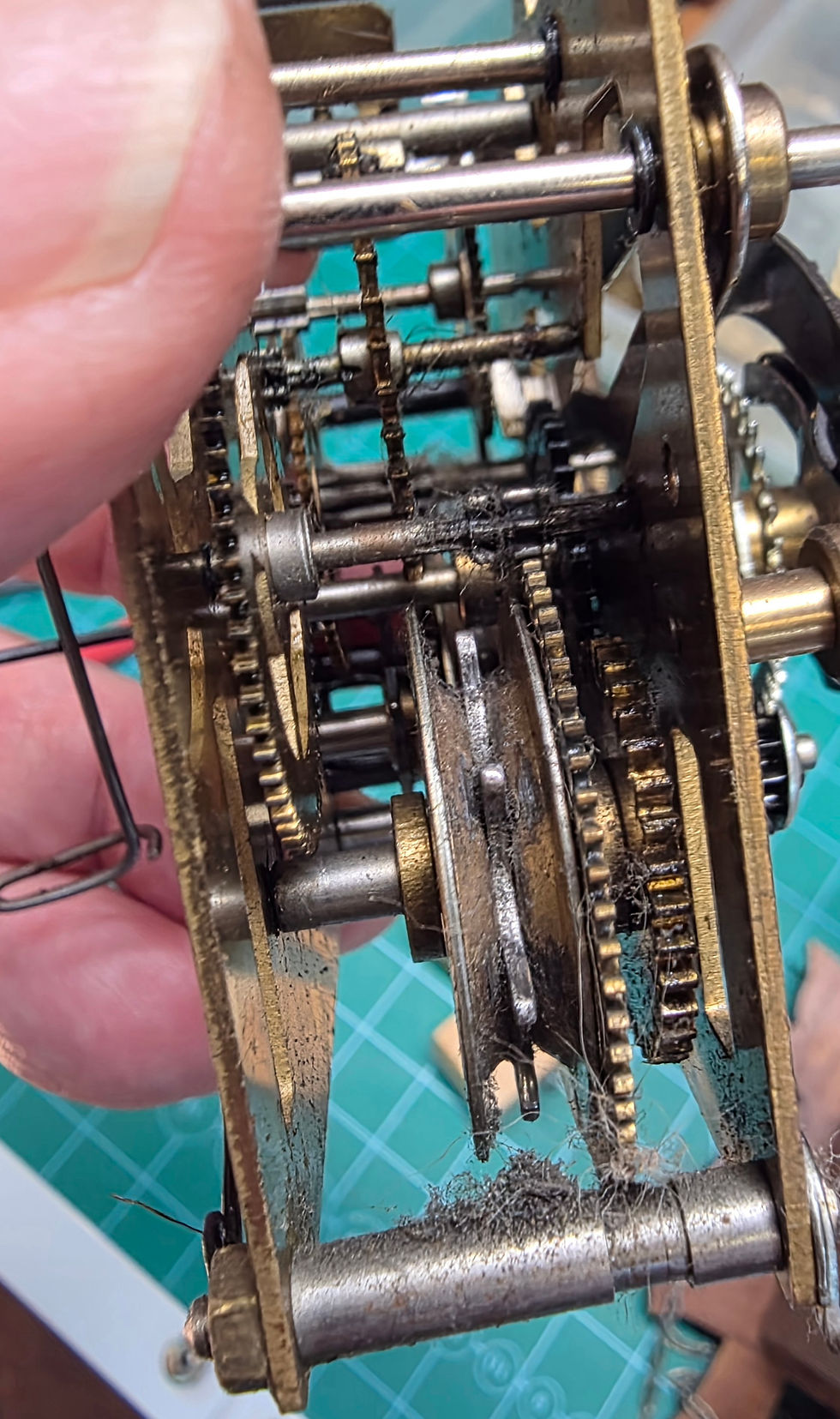

Dried Oil and Grime: Microscopic dust, pet dander, or old lubricants form a sticky paste inside the pivot holes, creating excessive friction for the weights to overcome.
Worn Pivot Bushings: Decades of friction have turned perfectly round gear-shaft holes into oval shapes, causing gears to bind up and lose power.
Bent Escapement Teeth: The escape wheel or pallet mechanism interacting with the pendulum has been bent during transport or aggressive hand setting.

Silent Switch Activation: The shut-off lever on the side or bottom of the case is partially engaged, jamming the release lever.
Trapped Cuckoo Bird: The cuckoo door latch is closed, or the door hinges are warped, preventing the bird from swinging forward and stalling the strike train.
Lifting Wire Jam: The internal wires that lift the bellows or open the door have become tangled, bent, or caught on the wooden frame.

Bushings badly worn allowing excess movement of Pivots

Corroded or pitted chains: this happens mainly when the chain links are steel the links tend to bind and not run through the movement well and can stick and cause the movement to stop.

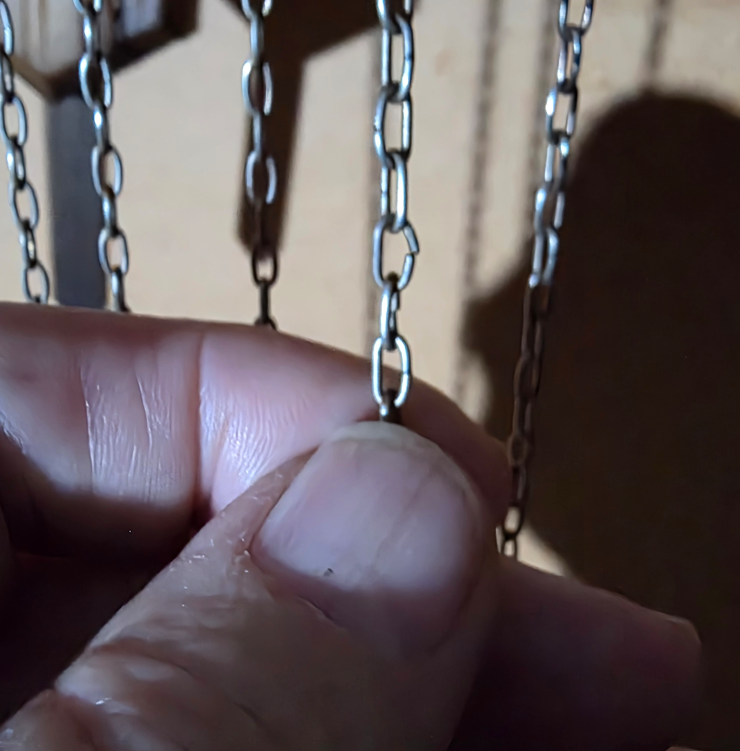

Explanation of the below image: The distorted link was in the last 600mm of the "strike train" (which went through the movement approx. 2am each morning) and intermittently delayed or stopped before the end of the strike sequence (example at 4 o'clock in the morning cuckooing 2 times and then stopping without completing the other 2 cuckoos. This caused the music box sequence not to start but the time chain kept running and keeping good time. By 9am the Cuckoo and gong were only indicating 5 cuckoo calls and 5 gongs. Eventually the bent link would pass through the "strike chain" having missed several hours and throwing the sequensing out.
Solution: If the chains are corroded or damaged replace then it will be worth it in the long run.
